A cable gland, also known as a cable entry, is a device used to create a secure and watertight connection between a cable and the enclosure or equipment it is entering. The main functions of a cable gland are:
Strain relief – The gland provides a means to secure the cable and prevent the weight or movement of the cable from being transferred to the internal connections.

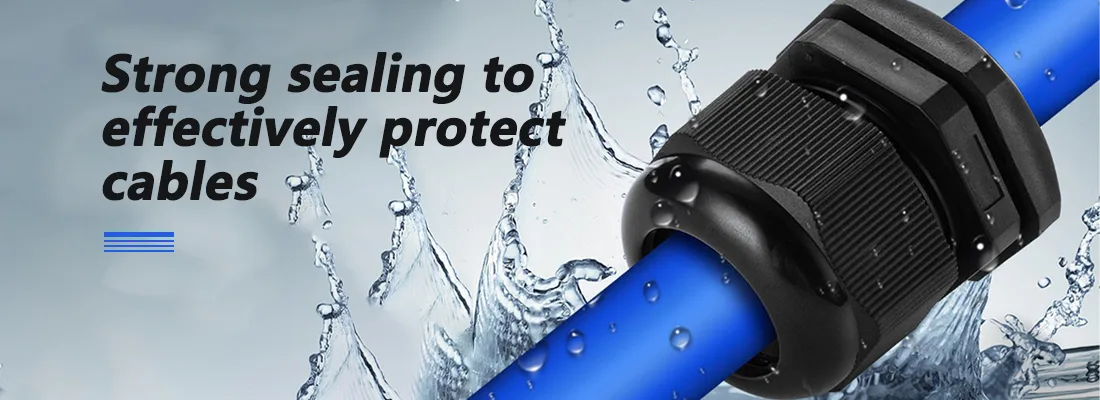

Sealing – The gland has a sealing element, often made of rubber or other pliable materials, that creates a tight seal around the cable to prevent the ingress of dust, moisture, or other contaminants.
Clamping – The gland uses a clamping mechanism, such as a compression nut, to grip the cable jacket and hold it in place securely.
Earthing/Grounding – Some cable glands provide a means to connect the cable’s metallic screen or armor to the equipment’s ground, improving electrical safety and EMC performance.

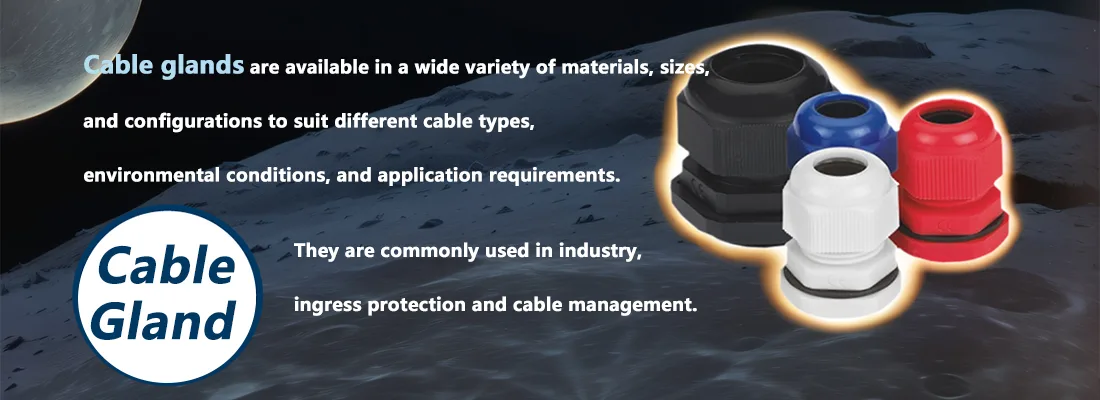

Cable glands are available in a wide variety of materials, sizes, and configurations to suit different cable types, environmental conditions, and application requirements. They are commonly used in industrial, marine, and hazardous area applications where ingress protection and cable management are important considerations.
What are the common materials used to make cable glands?
Cable glands are typically made from the following common materials:
Brass – Brass cable glands are a popular choice due to their corrosion resistance, durability, and good electrical conductivity for grounding applications. Brass glands are often nickel-plated for enhanced protection against corrosion.
Stainless Steel – Stainless steel cable glands offer excellent resistance to corrosion, making them suitable for harsh, outdoor, or marine environments. They are more expensive than brass but provide superior long-term performance.
Nylon – Nylon cable glands are a cost-effective option, particularly for indoor or less demanding applications. Nylon is a lightweight, non-metallic material that provides good insulation and chemical resistance.
Aluminum – Aluminum cable glands are lightweight and corrosion-resistant, making them a popular choice for applications where weight is a concern, such as in the aerospace industry.
Plastic – Plastic cable glands, often made from materials like polyamide or polycarbonate, are used in applications where a non-metallic, non-conductive option is required, such as in the presence of sensitive electronics.
The choice of material depends on the specific environmental conditions, chemical exposure, temperature range, and electrical requirements of the application. Some glands may also incorporate additional features, such as flame-retardant properties or explosion-proof designs, to meet specific safety standards.
How do the different cable gland materials compare in terms of cost, durability, and environmental resistance?
The different cable gland materials can be compared in terms of cost, durability, and environmental resistance as follows:
Cost:
1.Nylon – Least expensive
2.Brass – Moderately priced
3.Aluminum – More expensive than brass
4.Stainless Steel – Most expensive
Durability:
1.Stainless Steel – Highly durable and long-lasting
2.Brass – Durable, but can corrode over time
3.Aluminum – Durable, but may be susceptible to corrosion in some environments
4.Nylon – Moderately durable, but can be prone to wear and tear over time
Environmental Resistance:
1.Stainless Steel – Excellent resistance to corrosion and chemicals
2.Brass – Good resistance to corrosion, but can be affected by certain chemicals
3.Aluminum – Moderate resistance to corrosion, but can be affected by some chemicals
4.Nylon – Good resistance to many chemicals, but can be affected by solvents and some acids
In general:
Stainless steel offers the highest durability and environmental resistance, but is the most expensive.
Brass provides a good balance of cost, durability, and environmental resistance.
Aluminum is a lightweight option but may have some limitations in terms of corrosion resistance.
Nylon is the most cost-effective, but has the lowest durability and environmental resistance compared to the metallic options.
The specific requirements of the application, such as the operating environment, exposure to chemicals, and budget constraints, will ultimately determine the most suitable cable gland material.
What are the key factors to consider when selecting the most suitable cable gland material for a specific application?
When selecting the most suitable cable gland material for a specific application, the key factors to consider are:
1.Environmental Conditions:
Exposure to moisture, chemicals, UV radiation, extreme temperatures, etc.
Stainless steel, brass, and aluminum offer better environmental resistance than nylon.
2.Corrosion Resistance:
Exposure to corrosive substances, such as saltwater, acids, or alkalis.
Stainless steel has the highest corrosion resistance, followed by brass and aluminum.
3.Mechanical Stress and Vibration:
The level of physical stress, impact, and vibration the cable gland will experience.
Stainless steel and brass are more durable and resistant to mechanical stress than nylon.
4.Electrical Requirements:
Need for electrical conductivity or grounding/bonding.
Metallic cable glands (brass, stainless steel, aluminum) are better suited for grounding applications.
5.Hazardous Locations:
Use in areas with flammable gases, dusts, or vapors.
Specific explosion-proof or flame-resistant cable gland designs may be required.
6.Cost:
Nylon cable glands are the most cost-effective, while stainless steel is the most expensive.
The budget for the project or application should be considered.
7.Certifications and Approvals:
Compliance with relevant safety standards, such as ATEX, IECEx, or UL, may be necessary.
The cable gland material and design must meet the specified certification requirements.
By carefully evaluating these key factors, you can select the most appropriate cable gland material that provides the necessary performance, safety, and cost-effectiveness for the specific application.
